Overview

Explore Azure Key Vault to Kubernetes


Azure Key Vault to Kubernetes (akv2k8s) makes Azure Key Vault secrets, certificates and keys available in Kubernetes and/or your application - in a simple and secure way.

The Goals of the Azure Key Vault to Kubernetes project

The Azure Key Vault to Kubernetes project was set out with these goals in mind:

  • 1

    Avoid a direct program dependency on Azure Key Vault for getting secrets, and adhere to the 12 Factor App principle for configuration (https://12factor.net/config)

  • 2

    Make it simple, secure and low risk to transfer Azure Key Vault secrets into Kubernetes as native Kubernetes secrets

  • 3

    Bypass using Kubernetes Secrets entirely and transparently inject Azure Key Vault secrets directly into container applications

  • All of these goals are met.


Components

Akv2k8s contains two main components:

  1. The akv2k8s Controller syncs Azure Key Vault objects to Kubernetes as native Secret's or ConfigMaps
  2. The akv2k8s Injector injects Azure Key Vault objects as environment variables directly into your application.

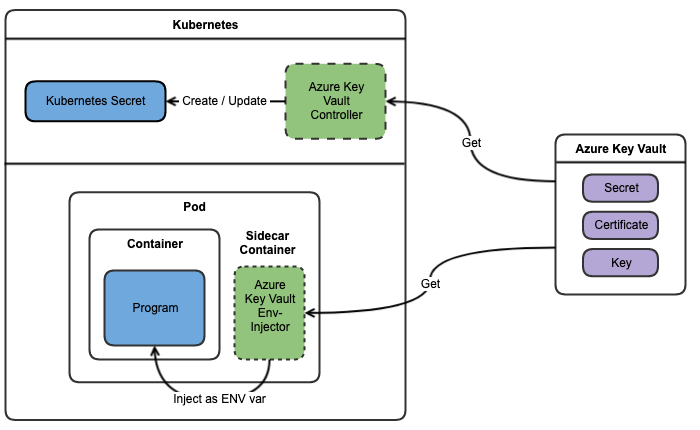

The diagram below illustrate the two options:

Controller and Env-Injector

For more information about the inner workings of Azure Key Vault for Kubernetes, see How it Works.

Install both

The recommendation is to install both the Controller and the Env Injector, enabling native Kubernetes secrets when needed and transparently injecting environment variables for all other cases.

When to use the Controller?

Use the Controller if:

  • the native Secret support in Kubernetes is desired - e.g. you need to use a 3rd party component that expects a Kubernetes Secret
  • the risks documented with Secrets in Kubernetes is acceptable
  • there are no concerns about storing Azure Key Vault secrets as base64 encoded plain text values in Kubernetes Secret resources
  • it is OK that anyone with read access to Secret resources in the Kubernetes cluster can read the content of the secrets
  • need to sync Azure Key Vault data to a Kubernetes ConfigMap

When to use the Env Injector?

Use the Env Injector if:

  • the application running in the container support getting secrets as environment variables
  • any of the risks documented with Secrets in Kubernetes is not acceptable
  • there are concerns about storing and exposing base64 encoded Azure Key Vault secrets as Kubernetes Secret resources
  • preventing Kubernetes users to gain access to Azure Key Vault secret content is important
  • secret environment variable values should not be revealed to Kubernetes resources like Pod specs, stored on disks, visible in logs or exposed in any way other than in-memory for the application

Not convinced yet?

Go check out Why use akv2k8s? to see if that changes your mind.

Want to get started?

Do the Quick Start!
